Power off, data off? Securing data loss

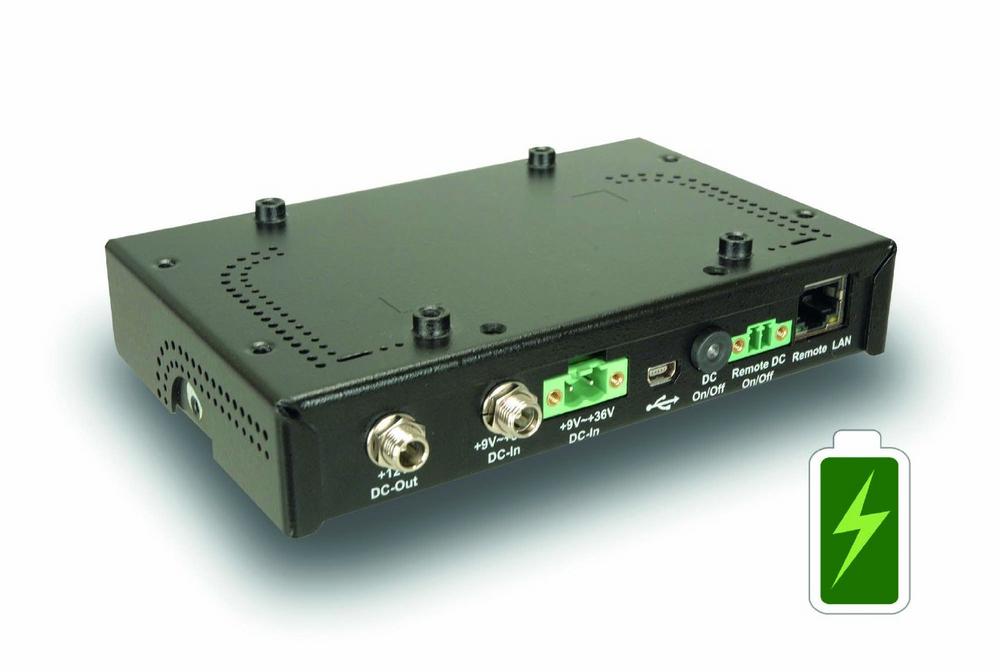

In the event of a power failure, data can be lost quickly, boot sectors destroyed or entire systems paralysed. For protection of embedded systems, panel PCs or mainboards with DC voltage input the AUPS series ICP Germany is the ideal solution. The four models of the uninterruptible power supply are offered in a robust metal housing. The VESA adapters on both sides allow easy installation between the device to be protected and the actual VESA mount. One 60 Watt and one 100 Watt version with either 12 Volt DC or with a wide range voltage input from 9 to 36 Volt DC are available. The Li-Ion battery provides a capacity of 5200mAH and is able to secure the system over a longer period of time. The uninterruptible power supply can be monitored locally on the system via USB, or remotely via the network connection. Besides displays for battery status, temperature, capacity, voltage input, the UPS and the warning messages to be issued can be configured. In case of an error, responsible persons are informed and the system is shut down safely. The AUPS is designed for a temperature range of 0 to 40 °C and offers appropriate certifications according to CE, FCC, UL as well as the UN Transport Test according to UN38.3.

ICP. Industrial Computer Products …by people who care!

Productlink:

https://www.icp-deutschland.de/index.php?filterStatus=50%7E%7E%7E60%7E%7E%7E70%7E%7E%7E80&filterCategoryPathROOT=Industrie%20PC&filterCategoryPathROOT%2FIndustrie%20PC=Zubeh%C3%B6r&followSearch=8999&searchparam=aups&cl=search

Datasheet:

https://files.icp-deutschland.de/produkte/KC001800/web/icp/AUPS-datasheet-20190107.pdf

Specifications

• 60/100 Watt with 12/9~36 Volt DC voltage input
• 12 Volt DC Output voltage
• 28/56 Wh
• Up to 140 minutes operating time in case of power failure
• Web-based management software
• Local PC monitoring software
• Auto Shut Down with empty battery
• Remote DC on/off switch
• Robust metal housing with VESA mount option

Applications

• Image processing
• Industry PC
• Control system
• Automation
• Robotics
