AMD Mini-ITX with Ryzen CPU and VEGA GPU

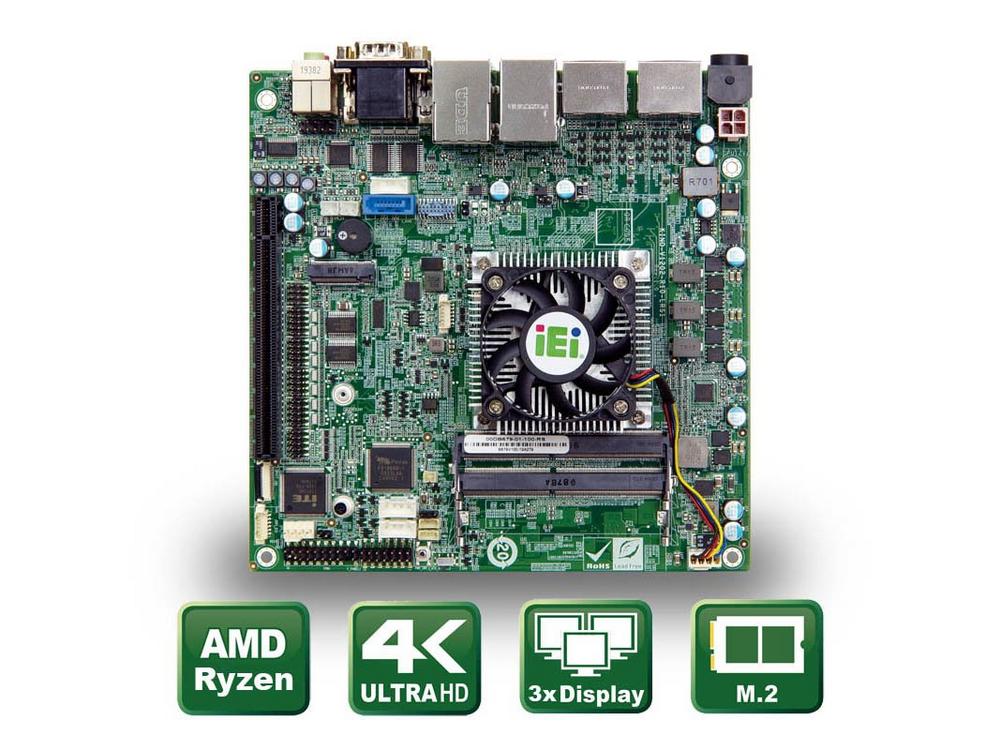

The Mini-ITX boards of the gKINO-R1000 series from ICP Germany are, like the bigger brothers of the gKINO-V1000 series, AMD® based solutions with RyzenTM CPUs. The gKINO-R1606G board is equipped with a dual core R1606G processor with 2.6GHz clock speed, whereas the gKINO-R1505G is equipped with a dual core R1505G processor with 2.4GHz clock speed. Both come with RadeonTM VEGA HD7000 graphics. This supports a resolution of 4K (3840×2160) on the three display port outputs. DX11, UVD3, H.264, VC-1, MPEG-2, DivX®, Open CLTM, OpenGL 4.2 and soon Open GL4.3. The two 260 pin SODIMM slots can be equipped with a maximum of 64GB ECC memory. The gKINO-R1000 boards offer on the IO-Shield beside the three DP interfaces, two RJ45 GbE, two RS-232, two USB2.0, two USB 3.2 Gen1 with 5Gb/s and audio with 6 Watt amplifier circuit. Also available on pin header are two RS-232 with Cctalk, four RS-232, two USB 2.0, SATA 3.0 and 8-bit GPIO. Expansion cards can be operated on the PCI Express x16 slot and the M.2 2242/2280 with PCIEe x2 and SATA signal. To secure the system, the board can be equipped with a TPM 2.0 Nuvoton NPCT750AAAYX. The boards also have an intrusion detection pin and watchdog functionality. Both versions work reliably in a temperature range of -10 °C to 70 °C. On customer request ICP also delivers the gKINO-R1000 boards as a bundle with processor, industrial memory and storage media.

ICP. Industrial Computer Products …by people who care!

Product Link:
https://www.icp-deutschland.de/…

Datasheet:
https://files.icp-deutschland.de/…

Specifications

• Mini-ITX Form Factor
• AMD® RyzenTM R1000 Embedded CPU
• 64GB DDR4 SO-DIMM memory with ECC support
• Tripple 4K Display Support
• AMD RadeonTM GPU VEGA Graphics
• 1x M.2 2280, 1x PCIe x16
• GbE, USB3.2, DP, RS-232
• Intrusion Detection, TPM, Cctalk, Watchdog

Applications

• Industrial PC Systems
• Compact PC Systems
• Image and video processing
• Panel PC and embedded systems
• Gaming
