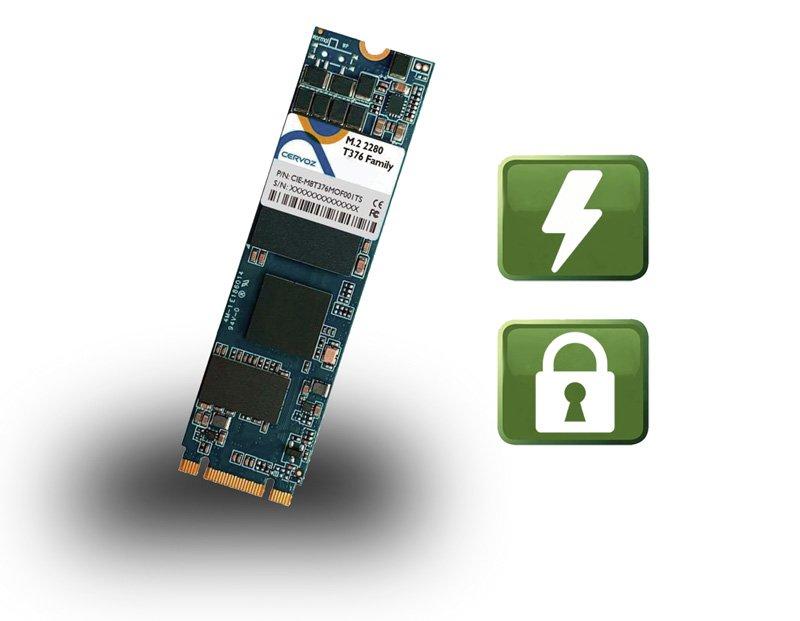

Industrial M.2 SSD series with power loss protection

The M.2 T376 series is available in form factor 2280 and has a B and M key. The built-in 3D TLC NAND Flash memory is available in 128GB, 256GB, 512GB and 1TB. With a read speed of up to 550 MB/s and a write speed of up to 475 MB/s, the SSD has sufficient performance for common operating systems.

A version for the temperature range from 0 °C to 70 °C and a version with an extended temperature range from -40 °C to +85 °C are offered. The T376 is always energy-saving: Just 460mW power in idle mode, or 2140mW power in active mode. With an MTBF of 2,000,000 hours and a maximum of 1167 Terra Byte Written, the T376 underlines its industrial suitability.

ICP. Industrial Computer Products …by people who care!

Product Link
https://www.icp-deutschland.de/…

Datasheet
https://files.icp-deutschland.de/…

Specifications

• 3D TLC NAND Flash Memory
• SATAIII 6.0Gb/s with backward compatibility to SATAI and SATAII
• 128GB to 2TB capacity
• 5", mSATA and M.2 2280 form factor
• DDR3 DRAM buffer memory
• Powerguard function (Power Loss Protection)
• AES-256-bit encryption
• SLC Write Cache Technology
• Low power consumption
• Static and Dynamic Wear Leveling
• Bad Block Management
• M.A.R.T. & Trim functions
• Standard or extended temperature range
• Optional write protection

Applications

• embedded systems
• 19" systems
• Measuring computer
• Image processing
• Multimedia
• Artificial Intelligence
• Data processing
