Modular Embedded PC certified for Milestone video management system

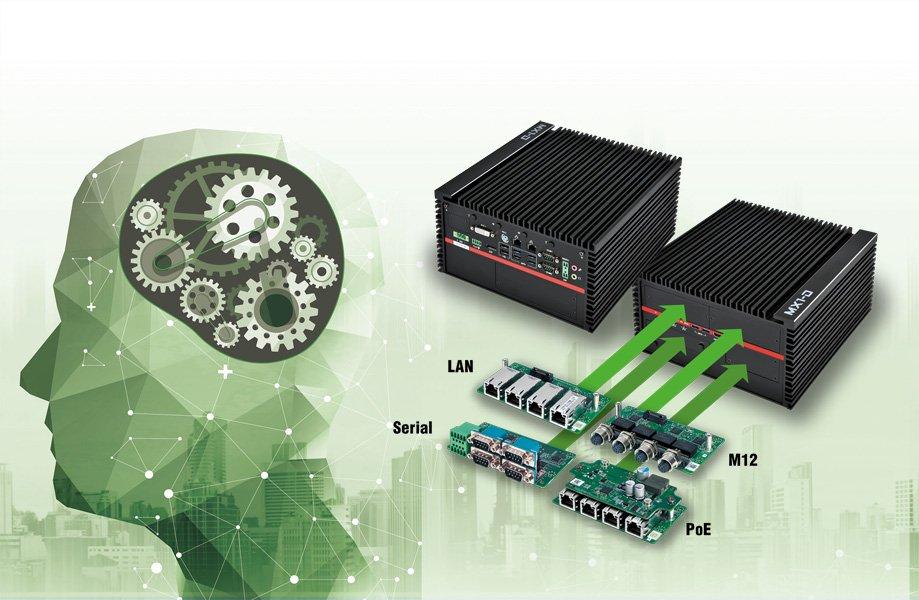

ICP Deutschland offers with the SurveiPC a new series of Ready-to-Use systems, which are predestined for use in the field of video surveillance. The basis of SurveiPC is the modular embedded system MX1-10FEP-D, which is approved for the use of the milestone video management software XProtect® in addition to the "NGC Ready" classification. The systems are equipped either with powerful XEON® or with Core ITM processors from Intel®. 32GB DDR4 RAM with a clock speed of 2666MHz and a 256GB industrial 3D-NAND TLC SSD are standard in the SurveiPCs. Furthermore the basic system offers remote power ON/OFF and remote reset, one Intel i219-LM and one i210-IT GbE LAN port, four USB 3.1, two USB 3.0, two USB 2.0, PS/2, two RS-232/422/485 interfaces and two SIM card holders. In addition, the versatile expansion options allow the system to be further upgraded. Up to 12 LAN ports, or 10 PoE connections, 10 serial interfaces and 16 digital inputs/outputs can be realized with the modular system. The SurveiPC comes standard with an M.2 VPU accelerator card, which is designed for video-based analysis based on artificial intelligence. The Intel® Open Source Toolkit "Open Visual Inference Neural Network Optimization" (OpenVINO™) is pre-installed and enables CNN (convolutional neural network) based pre-trained models to be used at the edge with little effort. By combining the modular hardware with Milestone’s XProtect® video management software, which can be upgraded with additional functions as needed, system integrators can set up secure, reliable and individually adaptable video management systems. The SurveiPC series from ICP Germany can be customized with other storage media, VPU accelerator cards or high-end graphics cards.

ICP. Industrial Computer Products …by people who care!

Product Link

https://www.icp-deutschland.de/index.php?stoken=E60CDC8F&lang=0&cl=search&searchparam=surveipc

Datasheet

https://files.icp-deutschland.de/produkte/KC002411/web/icp/MX1-10FEP-D-datasheet-20200403.pdf

Specifications

• Embedded Box PC with LGA1151 socket
• 8th and 9th generation Intel® CoreTM I and XEON processors
• Intel® C246 chipset
• 32GB DDR4 ECC/NON-ECC SO-DIMM memory
• 3x 2.5" drive bays
• 1x M.2 2242/2260/2280 M Key, 1x M.2 M2230 E Key
• 1x PCIe 3.0 x16 and 1x PCIe 3.0 x1 expansion slot
  for graphics cards
• 2x mini PCI Express Full Size
• 0, HDMI, DP, DVI-I, Dual GbE, RS-232/422/485

Applications

• AI applications at the Edge
• Image processing
• Transport/Traffic
• Traffic monitoring
