Modular, expandable and high-performance embedded systems

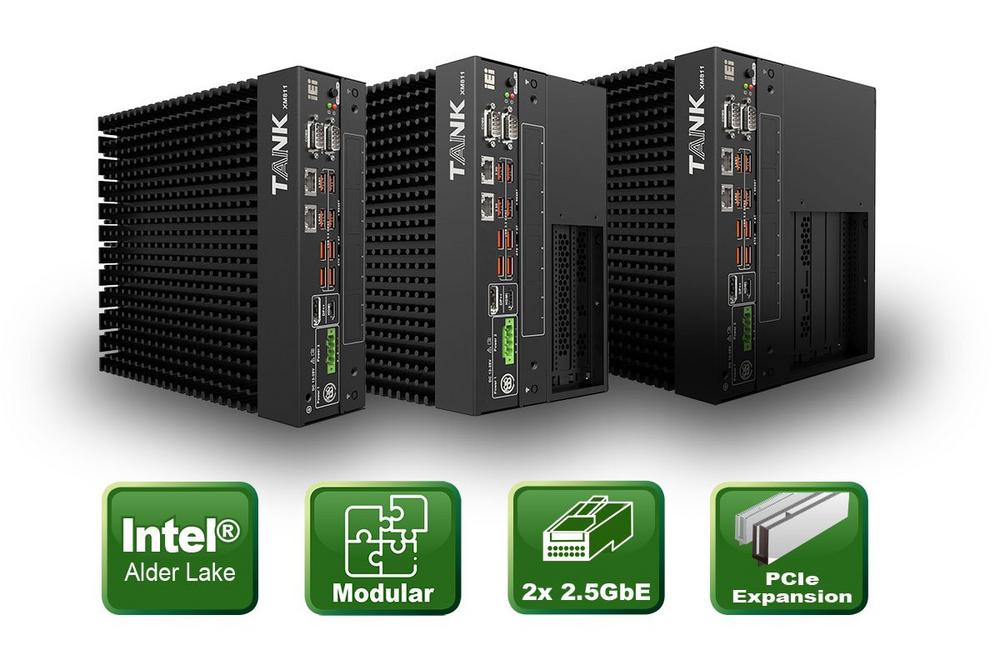

Modular, expandable and high performance. Three characteristics combined in the new TANK-XM811 from ICP Germany. Both the housing and the mainboard structure of the TANK-XM811 have been designed modularly. Processor, main memory and SSD can be installed in the simplest way due to the housing design divided into three levels. Besides, this design facilitates the recycling of the system at the end of life. Additional expansion boxes can be used to add PCI Express slots to the chassis to make room for graphics cards or other add-on cards. Furthermore, additional features such as PoE or M.2 slots can be added to the system via expansion modules. The black aluminum alloy chassis brings a weight reduction as well as an improvement in cooling characteristics. The TANK-XM supports the 12th generation Intel® Core-I CPU technology. Two pre-assembled variants with Intel® Core™ i5-12500TE with max. 4.3GHz or with Intel® Core™ i7-12700TE with max. 4.6GHz clock speed offer sensational performance at low power consumption. Two DDR4 SODIMM slots can be equipped with a maximum of 64GB RAM. By default, the TANK-XM is shipped with 8GB of RAM. Both a DP++ and an HDMI port are available for connecting monitors. To expand the flexible TANK-XM811, the user has access to two 2.5GbE, eight USB 3.2 Gen2, four RS-232 and two RS-232/422/485 interfaces and twelve digital inputs/outputs. With a voltage input of 12 to 28 VDC and an operating temperature range of -20 °C to 60 °C, the TANK-XM underscores its flexible application options. On request, ICP Germany can deliver the TANK-XM811 with industrial main memory, solid state disk storage media and operating system as a ready-to-use system.

Specifications

• Intel® Core™ i5-Alder Lake CPU 12500TE 1.9GHz
• Intel® R680E chipset
• 2x 8GB DDR4 SO-DIMM pre-installed (expandable up to 64GB)
• 1x 2.5" 256GB SSD
• 2x RJ45 (1x Intel ® I225LM 2.5 GbE; 1x Intel® I225V 2.5GbE)
• USB 3.2, COM
• 12-bit digital I/O

Applications

• IoT
• OEM
• ISVs
• Machine Vision

ICP. Industrial Computer Products …by people who care!
