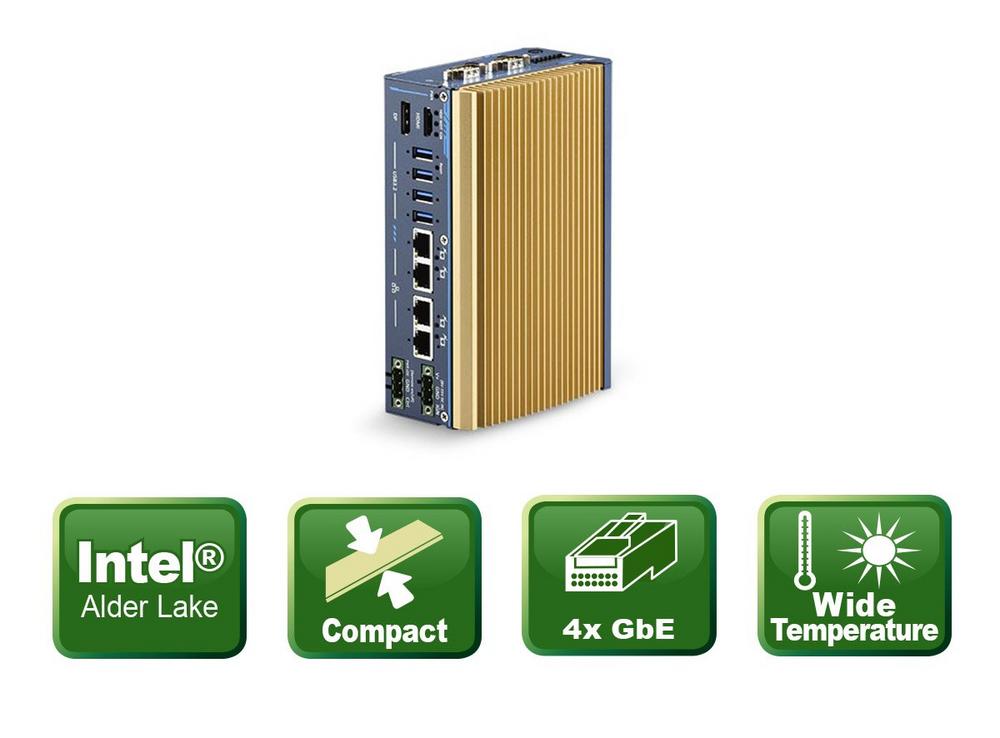

Ultra compact, high-performance, robust and expandable

The heart of the POC-700 series offers two different Intel® Alder Lake processors. The POC-715 with i3-N305 processor is equipped with 8 cores, the POC-712 with Atom x7425E is equipped with 4 cores. The i3-N305 operates with a base clock frequency of 2.0 GHz and up to 2.6 GHz at maximum turbo clock frequency. The Atom® x7425E, on the other hand, has a base clock frequency of 1.5 GHz and a maximum turbo clock frequency of up to 3.4 GHz.

Four Intel® I350-AM4 Gigabit Ethernet ports are provided for the network connection. The POC-715 has a PoE+ function. There is also a display port, an HDMI port, four USB 3.2 ports and four serial interfaces via two ports. The software-programmable serial interface can be divided into one RS-232/422/485 and three RS-232, or one RS-232/422/485 and one RS-422/485 interface.

The main memory of the POC-700 series can be equipped with up to 16 GB DDR5 4800 MHz SDRAM via just one slot. An M.2 2280 M key is provided for storage media.

A full-size mini PCIe slot with internal micro SIM slot is available for the POC-700 series for expansion with LTE or WLAN. With a power supply of 8 to 35V, the POC-700 series can be used in extreme ambient temperatures from -25°C to 70°C.

ICP Germany supplies both POC-700 systems on request equipped with a suitable SSD and operating system as a ready-to-use system.

ICP. Industrial Computer Products …by people who care!

Specifications

• Ultra compact embedded system
• Intel® Core™ i3-N305 or Atom® x7425E
• Up to 16GB DDR5 4800MHz SDRAM memory
• 4x GbE with PoE+
• 1x HDMI, 1x display port
• 4x USB3.2
• 1x software programmable RS-232/422/485
• 2 2280 M key
• 1x full-size mini PCIe slot with internal micro SIM slot
• -25 °C to +70 °C

Applications

• Automation
• Industrial control
• Mechanical engineering
• data logger

Product Link

https://www.icp-deutschland.de/index.php?stoken=90783321&lang=0&cl=alist&searchparam=poc-71

Datasheet

https://files.icp-deutschland.de/produkte/KC004711/web/icp/poc-700-datasheet-20231116.pdf
